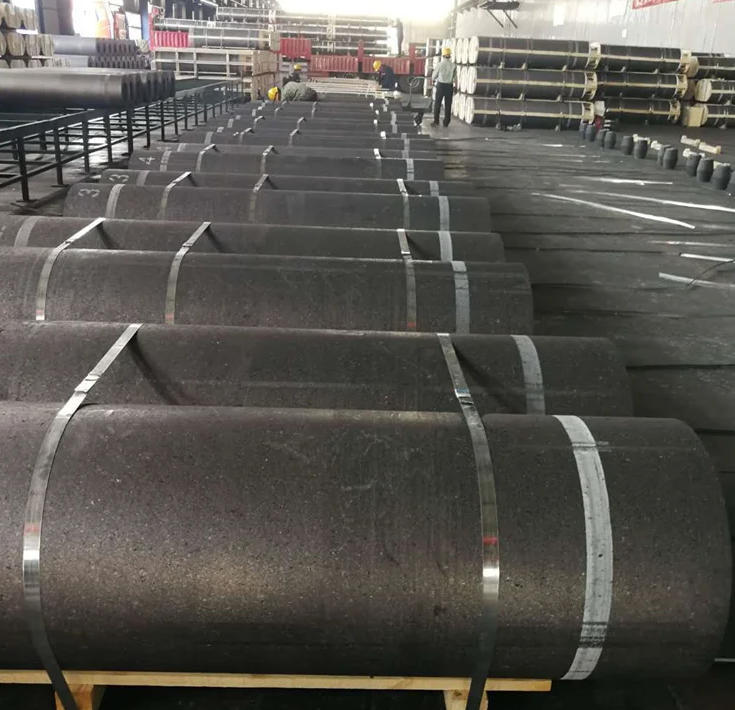

HP Grade 300mm Graphite Electrode Thermal Stability for Smelting
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Chaoyo |
| Certification | QA/QC |
| Numéro de modèle | Électrode en graphite |
| Quantité de commande min | 25 tonnes |
| Prix | USD1000/MT |
| Détails d'emballage | Palette en bois |
| Délai de livraison | 10-15 jours |
| Conditions de paiement | TT/LC |
| Capacité d'approvisionnement | 300 tonnes métriques/tonnes métriques par mois |
Détails sur le produit
| Grade | UHP (ultra haute puissance), HP (haute puissance), RP (puissance régulière) | Extension thermique | 1,5 - 2,8 X10-6 / (100-600) |
|---|---|---|---|
| Densité apparente (g/cm3) | 1.6-1.9 | Résistance (μω.m) | 4 - 9 Micro Ohm.m |
| Longueur | 1600 à 2400 mm |
Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
| Diamètre | 100-700mm | Longueur | 1500 à 2700 mm | |
|---|---|---|---|---|
| Article | Électrodes en graphite de qualité RP/HP/UHP | Taper | électrodes de graphite | |
| Teneur en carbone | RECORDS concernant les produits chimiques | Grade | UHP | |
| Façon de former | Graphite extrudé | Crystal Morphology | Graphite aphanitique | |
| Composition | Pétrole et coke | Forfait Transport | Palettes en bois/Caisses en bois | |
| Code SH | 85451100 | Capacité de production | 10000MT/month |
Description de produit
HP Grade 300mm Graphite Electrode Thermal Stability for Smelting
GP - impregnated cutting products. They are made from petroleum coke of coal tar pitch. In addition, in order to achieve a better welding effect, they are additionally impregnated with pitch. It gained its wide popularity in the metal casting industry, in ferroalloy furnaces and electric arc apparatus.
- E - electrode;
- G - graphite;
- P - impregnated;
- HP - for medium power DC arc furnaces.

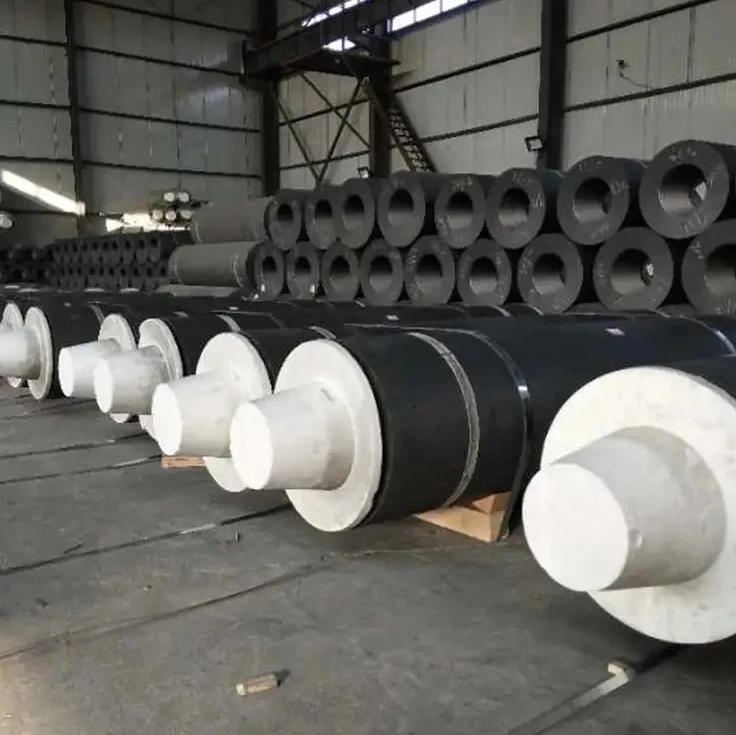

Each electrode is supplied with a nipple. At the request of the customer, the nipples can be supplied separately from the electrodes or in addition to the set. Electrodes with a diameter of 75 to 200 mm inclusive and nipples for them are made with a cylindrical thread, and electrodes with a diameter of 250 mm or more and nipples for them are made with a tapered thread.
In order to eliminate the unwinding of the conical nipple joint during vibration of the electrodes in the furnace, the nipples to the electrodes can be made with grooves and equipped with stopper plugs or stopper paste.
Technical Data:
| Diameter | length (mm) | around weight kgs |
| Φ20 | 1700 | 1 |
| Φ25 | 1700 | 1.5 |
| 1900 | 1.68 | |
| 2200 | 1.95 | |
| 2250 | 1.98 | |
| Φ30 | 1700 | 2 |
| 1900 | 2.24 | |
| 2200 | 2.59 | |
| Φ35w | 1700 | 2.85 |
| 1900 | 3.2 | |
| 2100 | 3.52 | |
| 2200 | 3.68 | |
| Φ40 | 1700 | 3.5 |
| 1900 | 4 | |
| 2100 | 4.32 | |
| 2200 | 4.63 | |
| 2400 | 5.05 | |
| 2270 | 4.7 | |
| Φ45 | 2250 | 5.21 |
| Φ50 | 1700 | 5.5 |
| 1920 | 6.3 | |
| 2100 | 6.8 | |
| 2200 | 7.12 | |
| 2500 | 8 | |
| Φ60 | 1400 | 6.5 |
| 1700 | 7.9 | |
| 1300 | 6.04 | |
| Φ63 | 2000 | 8.7 |
| Φ70 | 2100 | 5.68 |
| 2250 | 5.5 | |
| 2500 | 6.3 | |
| Φ72 | 2250 | 15.7 |
| 2470 | 17 | |
| Φ75 | 2250 | 16.4 |
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Applications:
Mainly used in steel-making in electric furnace,mineral hot furnace and electric resistance furnace.
Hard Alloys, Graphite Mold, Diamond Aiguille, Saw Sinter Film, semiconductor Monocrystal Graphite Mold, Continuous Casting, Casting Steel, Alloys casting, Metals Casting, Graphite for Ray-cable, Graphite for Mid or Mini-type Rocket, Crucibles.
