Graphite Electrode Rod for Steel Melting,Graphite Electrode, UHP Graphite Electrode
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Chaoyo |
| Certification | QA/QC |
| Numéro de modèle | Électrode en graphite |
| Quantité de commande min | 25 tonnes |
| Prix | USD1000/MT |
| Détails d'emballage | Palette en bois |
| Délai de livraison | 10-15 jours |
| Conditions de paiement | TT/LC |
| Capacité d'approvisionnement | 300 tonnes métriques/tonnes métriques par mois |
Détails sur le produit
| Grade | UHP (ultra haute puissance), HP (haute puissance), RP (puissance régulière) | Extension thermique | 1,5 - 2,8 X10-6 / (100-600) |
|---|---|---|---|
| Densité apparente (g/cm3) | 1.6-1.9 | Résistance (μω.m) | 4 - 9 Micro Ohm.m |
| Longueur | 1600 à 2400 mm |
Vous pouvez cocher les produits dont vous avez besoin et communiquer avec nous dans le babillard électronique.
| Diameter | 100-700mm | Length | 1500-2700mm | |
|---|---|---|---|---|
| Item | RP/HP/UHP Grade Graphite Electrodes | Type | Graphite Electrodes | |
| Carbon Content | High-Carbon | Grade | UHP | |
| Forming Way | Extruded Graphite | Crystal Morphology | Aphanitic Graphite | |
| Composition | Petroleum and Coke | Transport Package | Wooden Pallets/Wooden Cases | |
| HS Code | 85451100 | Production Capacity | 10000mt/Month |
Description de produit
Graphite Electrode Rod for Steel Melting,Graphite Electrode, UHP Graphite Electrode
Graphite electrode is made from the domestic first petroleum coke and high quality needle coke and widely used in the electric arc furnaces for production of alloy steels, metal and other nonmetallic materials, etc. The graphite electrodes include: regular power,high power,ultra high power and square electrode. The range of diameters covers from 200mm to 700mm. Our products own the following characteristics:low electric resisitivity, good electric and thermal conductivity,high oxidation resisitance, greater resisitance to thermal and mechanical shock,high mechanical strength, high machining accuracy.
We can produce regular power, high power, and ultra high power graphite electrodes of Φ300-800mm according to customers requirements.

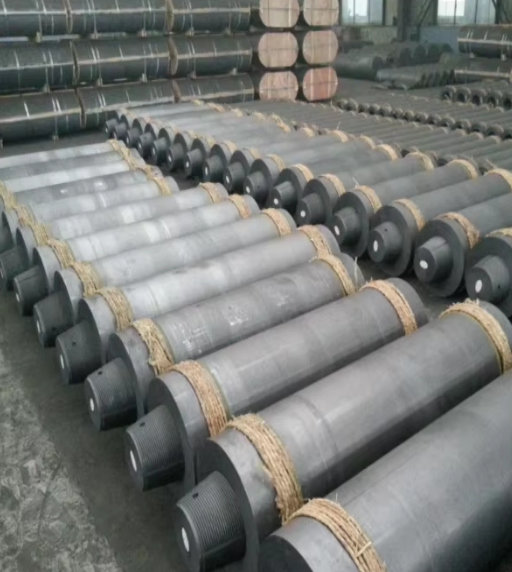

RP HP UHP Graphite Electrods With Nipple
Grade: RP/HP/UHP
Diameter: 300/350/400/450/500/550/600/700/800mm
Length: 1500-2700mm
Nipple: 3TPI,4TPI
Notes of the use of graphite electrode
1.The electrode holder should be held in the place beyond the security line of the top electrode;otherwise, the electrode would be easily broken.the contact surface between the holder and the electrode should be cleaned up regularly to maintain a good contacting,the cooling jacket of the holder shall be avoided from water leakage.
2.Identify the reasons it there is gap in the electrode junction,do not use them until the gap is eliminated.
3.If there is falling off of nipple bolt when connecting electrodes,it is necessary to complete the nipple bolt.
4.The application of electrode should avoid of tilting operation, particularly , the gr.oup of connected electrodes should not be put horizontally so as to prevent from breaking.
5.When charging materials to the furnace,the bulk materials should be charged to the place of the furnace bottom,so as to minimize the impact of the large furnace materials on the electrodes.
6.The large pieces of insulation materials should be avoided of stacking on the bottom of the electrodes when smelting .so as to prevent from affecting the electrode use,or even broken.
7.Avoid of collapsing the furnace lid when rising or dropping the electrodes,which may result in electrode damage.
8.It is necessary to prevent the steel slag from splashing to the threads of the electrodes or nipple stored in the smelting site,which may damage the precision of the threads.
EAF Graphite Electrode PRODUCT DESCRIPTION
Graphite electrode, mainly made of high quality petroleum coke and needle coke, coal tar pitch as binder, is prepared by calcination, compounding, kneading, pressing, roasting, graphitization and machining. According to the quality, it can be divided into regular power, high power and ultra high power.
APPLICATION
Ultra high power graphite electrode, mainly used in ultra high power steelmaking electric arc furnace (EAF).
High power graphite electrode, mainly used in high power electric arc furnace for steel making.
Regular power graphite electrode, mainly used in ordinary power electric furnace for steel making, silicon refining, yellow phosphorus and so on.
regular power Graphite Electrode ADVANTAGE
More than 15 years of factory experiences
Low consumption and more durable
Strict quality control from raw materials to finished products
Advanced production technology and strong technical force
Excellent sales at home and abroad, export to more than 20 countries and areas like Russia, Vietnam, India, Bangladesh, Turkey, Iran etc.
PRODUCT FEATURE
Has good electrical conductivity
Strong thermal shock resistance
High mechanical strength.
SPECIFICATION
PRODUCT SPECIFICATION
We can supply graphite electrodes from dia 75-700mm in RP/HP/UHP or customized according to your needs.
Packaging & Delivery

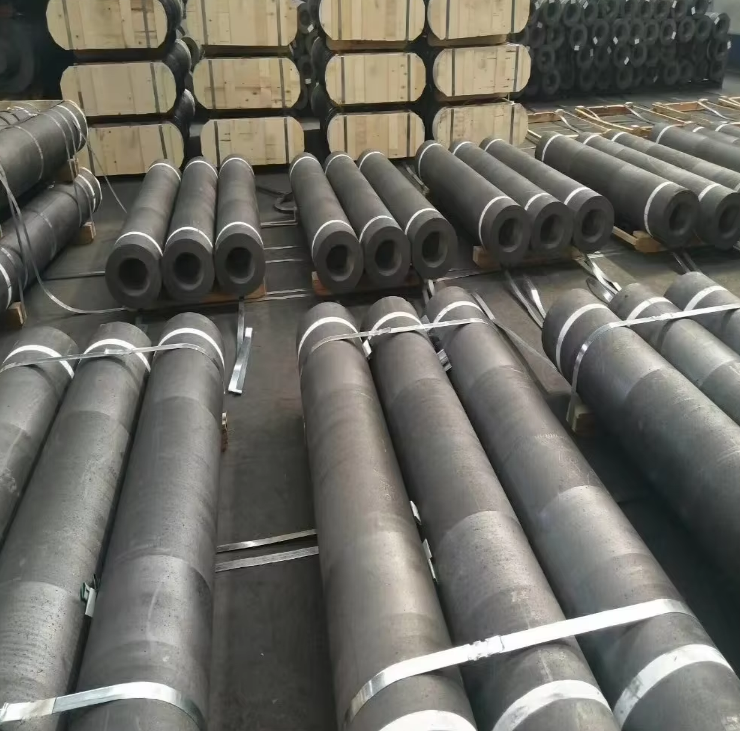

Packaging Details
Wooden cases with pallet and steel bands fastening, or according to your requirement.
Port
Tianjin Port or Qingdao Port
Lead Time
Usually it's about 15-30 days after get the payment. It is according to quantity.
The graphite electrode for arc furnaces and ladle refining furnaces for steel industries/steel plant in steel making.
Graphite electrodes will be stored in a clean and dry place. It can be used both indoors and outdoors. Whether indoors or outdoors, the goods will be loaded and transported away as soon as possible. If it is rainy or cloudy, the electrodes will be covered in advance to prevent damage.
Specification
| Specification | Regular power | High power | Ultra high power | |
| Specific ResistanceμΩ•m(max) | Electrode | 8.5 | 6.5 | 5.5 |
| Nipple | 6.5 | 5.5 | 4.5 | |
| Bulk densityg/cm3(min) | Electrode | 1.54 | 1.63 | 1.68 |
| Nipple | 1.69 | 1.73 | 1.75 | |
| Modulus of rapture Mpa(min) | Electrode | 8.5 | 10.5 | 11.0 |
| Nipple | 15.0 | 16.0 | 20.0 | |
| Yong’s Modulus Gpa(max) | Electrode | 9.3 | 12.0 | 14.0 |
| Nipple | 14.0 | 16.0 | 18.0 | |
| Ash% (max) | Electrode | 0.5 | 0.3 | 0.2 |
| Nipple | 0.5 | 0.3 | 0.3 | |
| CTE(100-600℃)10-6 | Electrode | 2.9 | 2.2 | 1.5 |
| Nipple | 2.8 | 2.0 | 1.4 | |
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Application:
1. High quality and strictly inspected petroleum coke, needle coke as raw material.
2. Low specific resisvitiy
3. Low conspumption rate
4. Anti-oxidation, uniform strength
5. Good resistance to thermal shock
6. Perfect match betwee body and nipple.
7. Professional , experienced reliable and safe package & transportation
The core advantages of the product:
- Anti-oxidation treatment for longevity.
- High-purity,high-density,strong chemical stability.
- High machining accuracy,good surface finishing.
- High mechanical strength,low electrical resistance.
- Resistant to cracking & spalling.
- High resistance to oxidation and thermal shock.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Packing Details:
Wooden Case/Pallets with steel strips or As the customer's requirements
Port:
Tianjin Port, Qingdao Port
Leading Time:
Shipped in 15-30 days after payment
Raw material:
Made of high-quality low ash materials, such as petroleum coke, needle coke and coal pitch.
Production Process:
calcining,burdening,kneading,forming,baking and pressure impregnation, graphitizationand then precision machined with professional CNC machining.such of the products own characteristics.
Features:
- low resistivity
- good electrical conductivity
- low ash
- compact structure
- good anti oxidation and high mechanical strength
so it is the best conductive material for electric arc furnace and smelting furnace.
The Most Reliable Manufacturer For Graphite Products With Over 30 Years Experience:
High Quality Materials: High-purity needle coke & low quinoline insoluble coal tar pitch, ash ≤0.5%, dense structure, ensuring stability for high-temperature work.
