Hot Sale Carbon Electrode Graphite with Nipples
Carbon Graphite Electrodes are made from high quality domestic calcined petroleum coke and high quality imported needle petroleum coke.
Specification:
Product:Carbon Electrode Graphite With Nipple
Grade:RP/HP/UHP
Diameter:50-600mm
Length:1500-2400mm
Nipple:3TPI 4TPI 4TPIL
Other sizes can be provided upon customer's requirement
Technical Parameters/ Specifications:
|
Physical Properties |
RP Grade (Dia.100-600mm) |
HP Grade (Dia.150-500mm) |
UHP Grade (Dia.200-450mm) |
|
|
Specific Resistance (max) μΩ-m |
Electrode |
8.0 |
7.0 |
6.5 |
|
Nipple |
6.5 |
5.5 |
5.0 |
|
|
Bending Strength (min) Mpa |
Electrode |
11.0 |
12.0 |
12.0 |
|
Nipple |
14.0 |
14.0 |
16.0 |
|
|
Elastic Modulus (max) Gpa |
Electrode |
9.0 |
12.0 |
12.0 |
|
Nipple |
12.0 |
14.0 |
14.0 |
|
|
Bulk Density (min) g/cm3 |
Electrode |
1.56-1.60 |
1.65-1.70 |
1.66-1.72 |
|
Nipple |
1.70-1.72 |
1.72-1.74 |
1.73-1.76 |
|
|
C.T.E (max) ×10-6/C |
Electrode |
2.7 |
2.5 |
2.4 |
|
Nipple |
2.5 |
2.2 |
2.0 |
|
|
Ash (max) % |
Electrode |
0.30 |
0.30 |
0.20 |
|
Nipple |
||||
Size and Tolerance:
|
Diameter |
Length |
|||||
|
Nominal diameter |
Actual diameter |
Nominal length |
Tolerance |
|||
|
mm |
inch |
Maximum |
Minimum |
mm |
Length (mm) |
Short length (mm) |
|
150 |
6 |
154 |
149 |
1600 1800 |
+/-100 |
-275 |
|
200 |
8 |
205 |
200 |
|||
|
225 |
9 |
230 |
225 |
|||
|
250 |
10 |
256 |
251 |
(1600) 1800 |
||
|
300 |
12 |
307 |
302 |
|||
|
350 |
14 |
357 |
352 |
|||
|
400 |
16 |
409 |
403 |
(1600) 1800 |
||
|
450 |
18 |
460 |
454 |
|||
|
500 |
20 |
511 |
505 |
|||
Application:
Carbon Graphite Electrodes are used for steel making, metallurgy, casting, foundry, silicon metal, etc
Programmable properties:
1.Low electrical resistance
2. High bulk density
3. Low ash content
4. High mechanical strength
5. High oxidation resistance for abrupt change of temperature and high-yield in melting process
6. High anti-oxidation

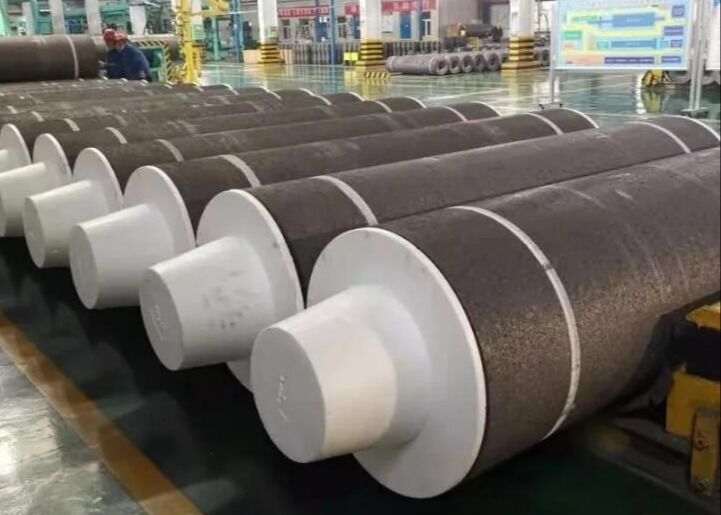

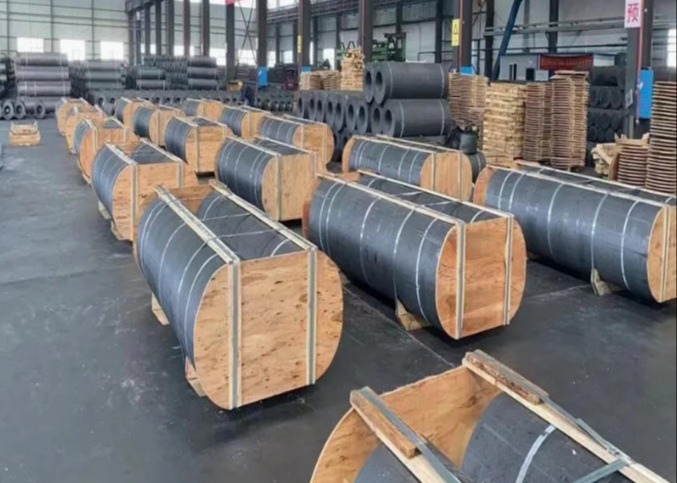

Photos For Carbon Electrode Graphite With Nipples:
