Graphite Products Carbon Electrode UHP/HP/RP Dia 350mm Graphite Electrode with Nipple for Lf or Eaf
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Chaoyo |
| Certification | QA/QC |
| Numéro de modèle | Électrode en graphite |
| Quantité de commande min | 25 tonnes |

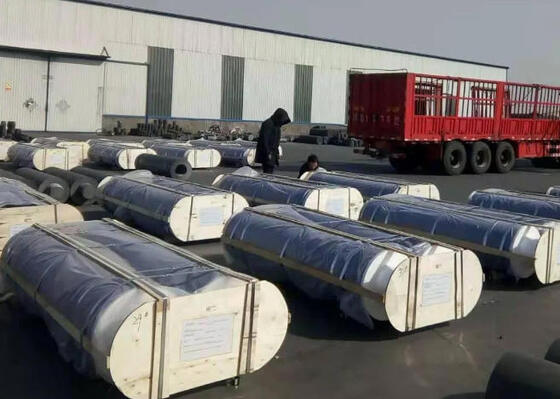

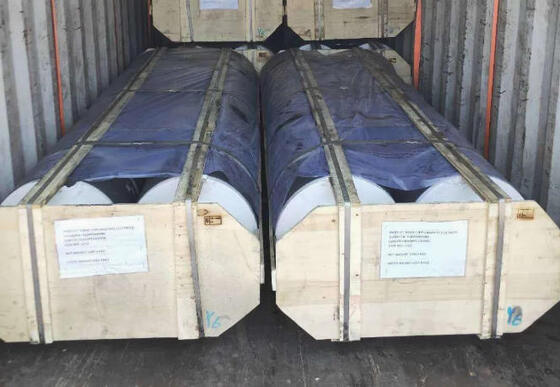

| Détails d'emballage | Palette en bois |
| Délai de livraison | 10-15 jours |
| Conditions de paiement | TT/LC |
| Capacité d'approvisionnement | 3000 tonnes métriques/tonnes métriques par mois |
Détails sur le produit
| Application | EAF/LF | Diamètre | 550 mm |
|---|---|---|---|
| Longueur | longueur 1800mm | Résistance (μΩ.m) | ≤6.5 |
| Densité apparente (g/cm3) | ≥1,65 | Extension thermique | ≤ 2.4 |
| Résistance à la flexion (N/m2) | ≥10.5 | Taper | Bloc d'électrode |
| Grade | UHP (puissance extrêmement élevée) | Connecter | 4TPI |
Description de produit
Graphite Products Carbon Electrode UHP/HP/RP Dia 350mm Graphite Electrode with Nipple for Lf or Eaf
Description:
Graphite electrode, mainly petroleum coke, needle coke as raw material, coal pitch as binder, calcination, ingredients, kneading,molding, baking and graphitization, machining and made, which is released in electric arc furnace in the form of arc conductor of electricity to heat melting furnace charge, with low resistivity, good conductivity, low ash, uniform and compact structure, good oxidation resistance, high mechanical strength, etc.
* High density, high temperature resistance, high mechanical strength and strong chemical stability.
* The surface can be treated with anti-oxidation.
* Corrosion resistance, strong acid and alkali resistance.
* Excellent thermal shock resistance, electrical conductivity and thermal conductivity.
* Strong wear resistance and lubricating performance.
* Long service life.
Graphite electrode, mainly from the domestic petroleum coke and imported needle coke, is widely used in electric arc furnace,ladle furnace, submerged arc electric furnace for theproduction of alloy steel, metal and nonmetallic materials.
Specification
| Graphite electrode specifications | ||||
| Specification | RP | HP | UHP | |
|
Resistance (μΩ.m) Max |
Electrode | 8.5 | 6.5 | 5.5 |
| Nipple | 6.5 | 5.5 | 4.5 | |
|
Bulk density (g/cm3) Min |
Electrode | 1.54 | 1.63 | 1.68 |
| Nipple | 1.69 | 1.73 | 1.75 | |
|
Bending strength (MPa) Min |
Electrode | 8.5 | 10.5 | 11.0 |
| Nipple | 15 | 16 | 20 | |
|
Young's modulus (GPa) Max |
Electrode | 9.3 | 12 | 14.0 |
| Nipple | 14.0 | 16.0 | 18.0 | |
|
Ash (%) Max |
Electrode | 0.5 | 0.3 | 0.2 |
| Nipple | 0.5 | 0.3 | 0.2 | |
|
CTE (100-600ºC) 10-6 |
Electrode | 2.9 | 2.2 | 1.5 |
| Nipple | 2.8 | 2.0 | 1.4 | |
|
Specifications (inch) |
Allowable diameter (mm) | Allowable length(mm) | |||
| Nominal diameter | Max | Min | Nominal Length | Allowance | |
| 8 | 200 | 207 | 202 |
1600/1800/ 2000/2100/ 2400/2700 |
+/-100mm |
| 10 | 250 | 257 | 252 | ||
| 12 | 300 | 307 | 302 | ||
| 14 | 350 | 357 | 352 | ||
| 16 | 400 | 409 | 403 | ||
| 18 | 450 | 460 | 454 | ||
| 20 | 500 | 511 | 505 | ||
| 22 | 550 | 562 | 556 | ||
| 24 | 600 | 613 | 607 | ||
| 28 | 700 | 714 | 708 | ||
Product Advantage
* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
- Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
- Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
- Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
- Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
- Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis
