Détails sur le produit:
Conditions de paiement et expédition:
|
| Application: | EAF/LF | Diamètre: | 550 mm |
|---|---|---|---|
| Longueur: | longueur 1800mm | Résistance (μΩ.m): | ≤6.5 |
| Densité apparente (g/cm3): | ≥1,65 | Extension thermique: | ≤ 2.4 |
| Résistance à la flexion (N/m2): | ≥10.5 | Taper: | Bloc d'électrode |
| Grade: | UHP (puissance extrêmement élevée) | Connecter: | 4TPI |
Premium Robust Design Efficient Operation Graphite Electrode for Power Generation
Description:
| RP | HP | UHP |
| Electrode: Bulk Density≥ 1.56g/cm3 Specific Resistivity≤ 8.5μm Bending Strength≥ 10.0MPa Elastic Modulus≤ 9.3GPa Thermal Expansion Coefficient≤ 2.7x10 -6/°C Ash≤ 0.5% Nipple: Bulk Density≥ 1.68g/cm3 Specific Resistivity≤ 7.0μm Bending Strength≥ 14.0MPa Elastic Modulus≤ 13.7GPa Thermal Expansion Coefficient≤ 2.5 x10 -6/°C Ash≤ 0.5% |
Electrode: Bulk Density≥ 1.65g/cm3 Specific Resistivity≤ 6.5μm Bending Strength≥ 12.0MPa Elastic Modulus≤ 10.0GPa Thermal Expansion Coefficient≤ 2.2x10 -6/°C Ash≤ 0.3% Nipple: Bulk Density≥ 1.74g/cm3 Specific Resistivity≤ 5.5μm Bending Strength≥ 16.0MPa Elastic Modulus≤ 14.0GPa Thermal Expansion Coefficient≤ 2.0 x10 -6/°C Ash≤ 0.3% |
Electrode: Bulk Density≥ 1.68g/cm3 Specific Resistivity≤ 5.8μm Bending Strength≥ 16.0MPa Elastic Modulus≤ 14.0GPa Thermal Expansion Coefficient≤ 1.9x10 -6/°C Ash≤ 0.2% Nipple: Bulk Density≥ 1.76g/cm3 Specific Resistivity≤ 4.5μm Bending Strength≥ 18.0MPa Elastic Modulus≤ 16.0GPa Thermal Expansion Coefficient≤ 1.4 x10 -6/°C Ash≤ 0.2% |
| Actual diameters | Actual lengths | ||||||
| Mm | Mm | MAX | MIN | Rough spot | Length | Tolerance | Shot Ruler size |
| 200 | 8 | 204 | 201 | 198 | 1600 | ±100 | -275 |
| 250 | 10 | 256 | 252 | 248 | 1600 1800 |
||
| 300 | 12 | 307 | 303 | 299 | |||
| 350 | 14 | 357 | 353 | 347 | |||
| 400 | 16 | 409 | 404 | 400 | 1600 1800 2000 |
||
| 450 | 18 | 460 | 455 | 451 | |||
| 500 | 20 | 511 | 506 | 502 | |||
| 600 | 24 | 613 | 607 | 604 | |||
| 780 | 31.2 | 782 | 776 | 774 | 2000 2200 2400 |
±100 | -400 |
| 800 | 32 | 802 | 796 | 794 | |||
| 870 | 34.8 | 872 | 866 | 862 | |||
| 900 | 36 | 902 | 896 | 892 | |||
| 920 | 36.8 | 922 | 916 | 912 | |||
| 960 | 38.4 | 962 | 956 | 952 | |||
| 1020 | 40.8 | 1022 | 1016 | 1012 | 2200 2600 2800 |
||
| 1060 | 42.4 | 1062 | 1056 | 1052 | |||
| 1100 | 44 | 1102 | 1092 | 1092 | |||
| 1146 | 45.8 | 1148 | 1140 | 1138 | |||
| 1197 | 47.9 | 1199 | 1191 | 1189 | |||
| 1250 | 50 | 1252 | 1244 | 1242 | |||
| 1272 | 50.9 | 1274 | 1266 | 1264 | |||
| 1305 | 54.4 | 1307 | 1299 | 1297 | |||
| 1321 | 52.8 | 1323 | 1315 | 1313 | |||
| 1400 | 56 | 1402 | 1394 | 1392 | |||
Application:
Graphite electrodes are used mainly in ladle furnaces,electric-arc furnace steelmaking,Yellow phosphorus furnace , Industrial silicon furnace or melting copper. They are presently the only products available that have the high levels of electrical conductivity and the capability of sustaining the extremely high levels of heat generated in this demanding environment.High Quality Needle Coke in HP&UHP graphite electrode,ensure the electrode application is perfect. Graphite electrodes are also used to refine steel in ladle furnaces and in other smelting processes.
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus

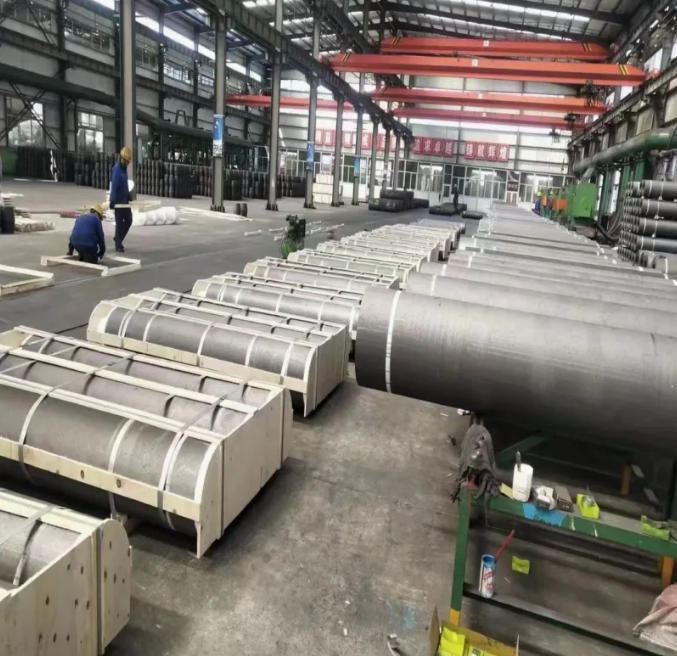

Production Application:
