Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod

Chine Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod fournisseur
Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod fournisseur Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod fournisseur

Image Grand :  Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod

Détails sur le produit:

Lieu d'origine: Chine
Nom de marque: Chaoyo
Certification: QA/QC
Numéro de modèle: Électrode en graphite

Conditions de paiement et expédition:

Quantité de commande min: 25 tonnes

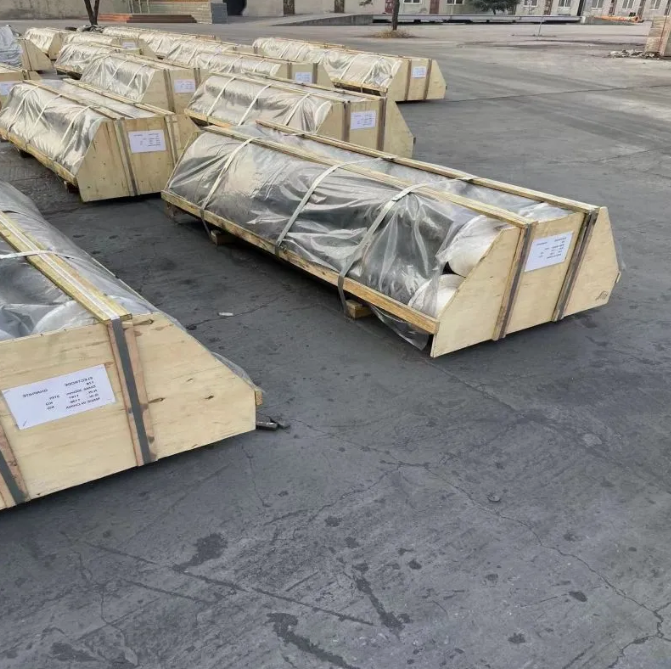

Détails d'emballage: Palette en bois
Délai de livraison: 10-15 jours
Conditions de paiement: TT/LC
Capacité d'approvisionnement: 3000 tonnes métriques/tonnes métriques par mois
Contact
Description de produit détaillée
Application: EAF/LF Diamètre: 550 mm
Longueur: longueur 1800mm Résistance (μΩ.m): ≤6.5
Densité apparente (g/cm3): ≥1,65 Extension thermique: ≤ 2.4
Résistance à la flexion (N/m2): ≥10.5 Taper: Bloc d'électrode
Grade: UHP (puissance extrêmement élevée) Connecter: 4TPI

Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod





Description:

Graphite electrode uhp 500 for refining furnace Graphite electrode uhp is mainly from the domestic petroleum coke and imported needle coke, graphite electrodes are widely used in electric arc furnace, ladle furnace, submerged arc electric furnace for the production of alloy steel, metal and nonmetallic materials. uhp graphite electrodes with current densities greater than 25 A / cm2 are acceptable. uhp graphite electrodes are mainly used in ultra-high power steelmaking

Graphite electrode uhp 500 for refining furnace

Graphite electrode uhp is mainly from the domestic petroleum coke and imported needle coke, graphite electrodes are widely used in electric arc furnace, ladle furnace, submerged arc electric furnace for the production of alloy steel, metal and nonmetallic materials. uhp graphite electrodes with current densities greater than 25 A / cm2 are acceptable. uhp graphite electrodes are mainly used in ultra-high power steelmaking electric arc furnace.



UHP graphite electrodes are made of petroleum coke, needle coke as raw material, coal pitch as binder, after calcination, ingredients, kneading, pressing, roasting, graphitization, machining and released in the electric arc furnace steelmaking in the form of an arc Electric energy as a conductor to heat the melting furnace.

Properties of Graphite Electrode UHP

.Ultra high power,

.Graphite electrode,

.Good quality,

.Competitive price.

Advantages of Graphite Electrode UHP

.The surface can be used for the long life of anti oxidation treatment,

.High temperature resistance, corrosion resistance, strong acid resistance,

.Excellent resistance to thermal shock and conduction,

.Good wear resistance, good lubricity and long service life.



Nomina diameter RP HP UHP
Current Carrying Capacity Current Density Current Carrying Capacity Current Density Current Carrying Capacity Current Density
in mm A A/cm2 A A/cm2 A A/cm2
12 300 10000-13000 14-18 13000-17400 17-24 15000-22000 20-30
14 350 13500-18000 14-18 17400-24000 17-24 20000-30000 20-30
16 400 18000-23500 14-18 21000-31000 16-24 25000-40000 19-30
18 450 22000-27000 13-17 25000-40000 15-24 32000-45000 19-27
20 500 25000-32000 13-16 30000-48000 15-24 38000-55000 18-27
22 550 32000-40000 13-16 35000-55000 14-22 42000-64000 17-26
24 600 35000-41000 13-15 41000-61000 14-21 50000-73000 17-25
28 700 39000-48000 10-12 55000-82000 14-21 67000-99000 17-25
32 800 43000-54000 8-10 / / / /



Applications of Graphite Electrode UHP

Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.


Characteristics Of Graphite electrodes: Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time

Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod 0



Product Advantage

* High output,guarantee delivery date
Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash
(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
Application
1. Electric arc steelmaking furnace.
2. Ore-heating furnaces.
3. Resistance furnaces.



Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod 1



Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus

Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod 2



Production Application:

  1. Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
  2. Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
  3. Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
  4. Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
  5. Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis



Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod 3



Graphite Electrodes For Melting Arc Furnace Carbon Electrode Rod 4
