Détails sur le produit:
Conditions de paiement et expédition:
|
| Application: | EAF/LF | Diamètre: | 550 mm |
|---|---|---|---|
| Longueur: | longueur 1800mm | Résistance (μΩ.m): | ≤6.5 |
| Densité apparente (g/cm3): | ≥1,65 | Extension thermique: | ≤ 2.4 |
| Résistance à la flexion (N/m2): | ≥10.5 | Taper: | Bloc d'électrode |
| Grade: | UHP (puissance extrêmement élevée) | Connecter: | 4TPI |

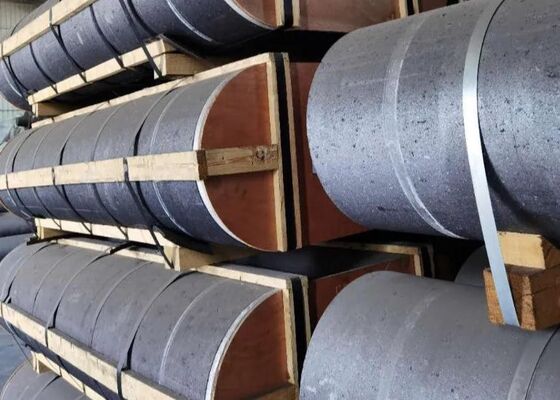

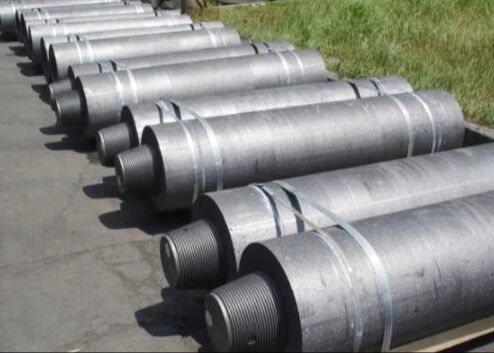

Uhp 200-800mm Graphite Electrode Electric Arc Furnace Carbon Graphite Electrodes for Steel Casting Graphite Electrodes uhp Price
Description:
Graphite electrode is a high-temperature graphite conductive material composed of petroleum coke and tar as fillers, and coal tar as binder. Graphite electrodes have the characteristics of low resistance, good conductivity and thermal conductivity, high oxidation resistance and thermal shock resistance, and high mechanical strength.Graphite electrodes can be divided into ordinary power graphite electrodes, high-power graphite electrodes, and ultra-high power graphite electrodes.
|
Graphite Electrode Materials: petroleum coke, needle coke, coal pitch;
Graphite Electrode Process: calcination, compounding, kneading, pressing, baking,impregnation, graphitization and machining;
Graphite Electrode Grades: RP/HP/UHP;
Graphite Electrode Features:
1.Low resistivity. 2.High electrical conductivity. 3.Low ash content. 4.Compact and uniform structure. 5.Excellent oxidation resistance. 6.High mechanic strength. Graphite Electrode Application:
1. Used in LF, EAF for steel making industry, Non-ferrous industry, silicon and phosphorus industry. 2. As the best conductive material for the electric arc furnaces and smelting furnace. 3. Used in the closed arc & resistor furnace. 4. For the production of graphite shaped products. such as various crucibles,shapes, boats and heating elements and other graphite products. Graphite Electrode Diameter: from 75 to 700mm. We can produce various specifications according to customer requirements. Specification
The Length & Diameter & Permissible Deviation of Graphite Electrode:
Technical Characteristics of Graphite Electrode RP, HP, UHP:
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Applications of Graphite Electrode UHP
1.For arc furnaces of electric arc furnaces. Graphite electrodes are most often used in a coal-smelting electric furnace. 2.For a closed arc 3.For a resistor furnace 4.For the production of graphite shaped products. The graphite electrode blank is also used for processing in various crucibles,shapes, boats and heating elements and other graphite products. For example, in the quartz glass industry, for each production of 1 ton of an electric melting tube, a graphite electrode 10 m is required, for each quartz brick of 1 ton it is necessary to consume 100 kg of graphite electrode.
Characteristics Of Graphite electrodes:
1. Excellent Thermal Conductivity Graphite boasts exceptional thermal conductivity, far superior to most metals. It can efficiently transfer heat and maintain stable thermal performance even in extreme temperature environments (from ultra-low to high temperatures above 3000℃). This advantage makes it an ideal material for heat dissipation components, high-temperature furnaces, and thermal management systems in electronics, metallurgy, and aerospace industries.
Product Advantage
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
