UHP Grade Graphite Electrode Graphite Electrode Price Manufacture

Image Grand : UHP Grade Graphite Electrode Graphite Electrode Price Manufacture

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	Chaoyo
Certification:	QA/QC
Numéro de modèle:	Électrode en graphite

Conditions de paiement et expédition:

Quantité de commande min:	25 tonnes

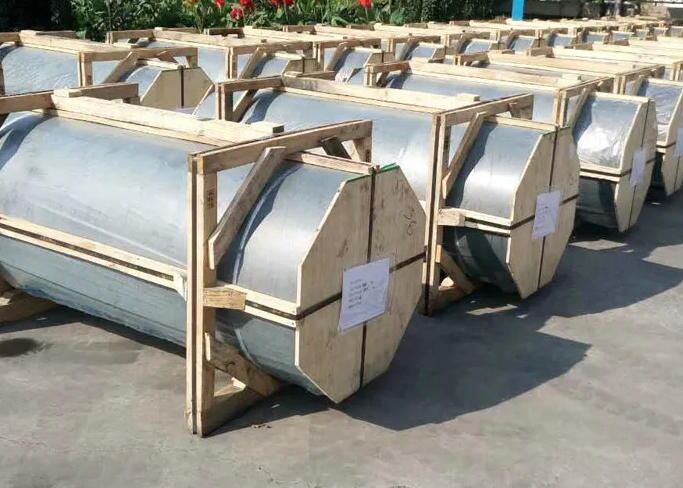

Détails d'emballage:	Palette en bois
Délai de livraison:	10-15 jours
Conditions de paiement:	TT/LC
Capacité d'approvisionnement:	3000 tonnes métriques/tonnes métriques par mois

Contact

Description de produit détaillée

Application:	EAF/LF	Diamètre:	550 mm
Longueur:	longueur 1800mm	Résistance (μΩ.m):	≤6.5
Densité apparente (g/cm3):	≥1,65	Extension thermique:	≤ 2.4
Résistance à la flexion (N/m2):	≥10.5	Taper:	Bloc d'électrode
Grade:	UHP (puissance extrêmement élevée)	Connecter:	4TPI

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture

Description:

Graphite electrodes are characterized by low resistance, good electrical conductivity and thermal conductivity, high resistance to oxidation and thermal shock, high mechanical strength, etc. According to its high quality and low quality, it can be divided into ordinary power graphite electrode, high power graphite electrode and ultra high power graphite electrode.

Specification

Name		Unit	Nominal Diameter
			UHP Ultra-High-Power		HP Superstrong		RP Conventional Power
			≤Φ400	≥Φ450	≤Φ400	≥Φ450	≤Φ300
Resistivity	Electrode	ΜΩ · m	≤5.5		≤6.5		≤8.5
	Nipple		≤4.5		≤5.5		≤6.5
Flexural Strength	Electrode	MPa	≥11.0		≥10.5	≥9.8	≥8.5
	Nipple		≥20.0		≥16.0		≥15.0
Elastic Modulus	Electrode	GPa	≤14.0		≤12.0		≤9.3
	Nipple		≤18.0		≤16.0		≤14.0
Density	Electrode	g / cm3	≥1.66	≥1.67	≥1.62	1.6	≥1.53
	Nipple		≥1.75		≥1.73		≥1.69
Coefficient Of Thermal Expansion	Electrode	10-6 / ºC	≤1.5		≤2.4		≤2.9
	Nipple		≤1.4		≤2.2		≤2.8
ASH		%	≤0.3		≤0.3		≤0.5

Applications of Graphite Electrode UHP

Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.

Advantages:

1.Anti-oxidation treatment for longevity.
2.High-purity,high-density,strong chemical stability.
3.High machining accuracy,good surface finishing.
4.High mechanical strength,low electrical resistance.
5.Resistant to cracking & spalling.
6.High resistance to oxidation and thermal shock.

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture 0

Product Advantage

* High output,guarantee delivery date

Annual output: 80,000 tons
* Low resistivity
* Good thermal conductivity and electrical conductivity
* Low ash

(UHP:0.3%max; HP:0.2%max; RP:0.5%max)
* Low graphite electrode consumption.
* Good oxidation resistance
* Needle coke content accounts for 80%,

Imported from Japan and South Korea

Product Features

Our graphite electrodes are with low electric resistance, high density, high anti-oxidation capability, precise machining accuracy, especially with low sulphur and low ash will not give steel second time.

1. Low electric resistance
2. High density
3. Good electrical conductivity
4. High anti-oxidation capability
5. Precise machining accuracy
6. Low sulphur and low ash, not give steel second time impurity

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture 1

Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture 2

Production Application:

Core application in Electric Arc Furnace (EAF) steelmaking (accounting for over 70% of global consumption): Conduct electricity to generate high-temperature electric arcs for melting scrap steel, producing construction steel, automotive steel and specialty steel
Facilitate non-ferrous metal smelting: Smelt metals such as copper, nickel and lead; also used in vacuum remelting of refractory metals like titanium to achieve purification and uniform composition
Produce key industrial materials: Manufacture metallurgical-grade silicon, polysilicon (for solar energy/semiconductors), as well as phosphorus and ferroalloys in submerged arc furnaces
Serve the electrochemical industry: Act as anodes in electrolytic refining of metals like copper and gold for purification, or as current collectors in fuel cells to ensure stable electricity transmission
Support specialized industries: Assist in high-temperature production of glass/ceramics (reducing energy consumption); also used in laboratory high-temperature experiments and electrochemical analysis

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture 3

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture 4

UHP Grade Graphite Electrode Graphite Electrode Price Manufacture 5
