Détails sur le produit:
Conditions de paiement et expédition:
|
| Application: | EAF/LF | Diamètre: | 550 mm |
|---|---|---|---|
| Longueur: | longueur 1800mm | Résistance (μΩ.m): | ≤6.5 |
| Densité apparente (g/cm3): | ≥1,65 | Extension thermique: | ≤ 2.4 |
| Résistance à la flexion (N/m2): | ≥10.5 | Taper: | Bloc d'électrode |
| Grade: | UHP (puissance extrêmement élevée) | Connecter: | 4TPI |

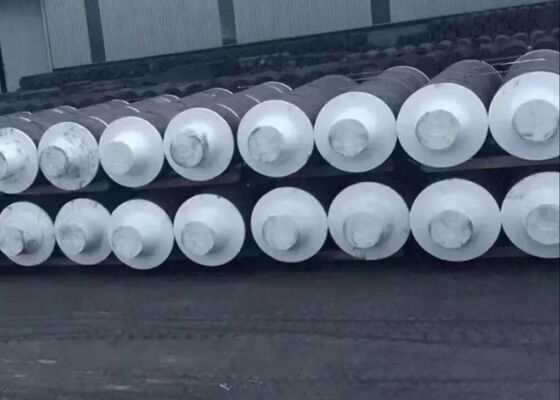

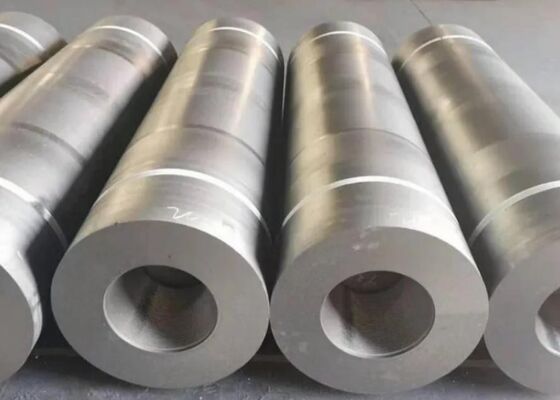

High Quality Low Ash Graphite Electrodes with Nipple for Arc Furnaces Steel Making
Description:
| Items | Type | Ultra high power type electrode diameter | High power type electrode diameter | High power type electrode diameter | |||
| Ø200-500 | Ø550-700 | Ø200-400 | Ø450-600 | Ø200-500 | Ø550-700 | ||
| Resistivity ≤ μΩ.m |
electrode | 5.5 | 6.5 | 8.5 | |||
| Connector | 4.5 | 5.5 | 6.5 | ||||
| Bulk Density≥ g/cm³ |
electrode | 1.68 | 1.7 | 1.68 | 1.65 | 1.6 | 1.58 |
| Connector | 1.8 | 1.78 | 1.75 | ||||
| Modulus of Rupture≥ Mpa |
electrode | 11 | 10.5 | 9.8 | 10 | 8 | |
| Connector | 20 | 17 | 15 | ||||
| elastic modulus ≤ Gpa |
electrode | 14 | 14 | 9.3 | |||
| Connector | 22 | 16 | 14 | ||||
| Ash Content≤ % |
electrode | 0.1 | 0.1 | 0.1 | |||
| Connector | 0.1 | 0.1 | 0.1 | ||||
| thermal expansion coefficient ≤ (100-600ºC) 100-6/ºC |
electrode | 1.5 | 2.4 | 2.9 | |||
| Connector | 1.4 | 2.2 | 2.7 | ||||
Applications of Graphite Electrode UHP
Graphite electrode uhp can be widely used in electric arc furnace and ladle refining furnace for steelmaking. uhp graphite electrodes can be widely used in the electric smelting furnace for producing the ferroalloy, pure silicon, yellow phosphorus, copper matte, calcium carbide and so on.
Application:
1. Be used for Steelmaking arc furnaces, refining furnace, as conducting electrode.
2. Be used for Metal-silicon furnace, Or-giraffe furnace, Corundum furnace etc. As conducting
electrode
Properties:
1. Good electrical conductivity.
2. Strong thermal shock resistance.
3. High mechanical strength.
Variety:
1. RP (Regular Power)
2. HP (High Power)
3. UHP (Ultra High Power)
4. RPI (Regular Power Impregnated)
(Notice: All of Graphite Electrodes is equipped to tapered nipple
Quality Assurance & Control
· National Certified Laboratory
· Key testing instruments, including: specific resistor, bulk density meter, elasticmodulus meter, bending strength inspector, ash analysis meter, CTE analysis meter, etc.
· On-time instrument calibration
· On-site properties testing, including:
L-CTE,C-CTE
Specific resistance, bulk density,
Bending strength, ash content, elastic modulus
Production Application:
