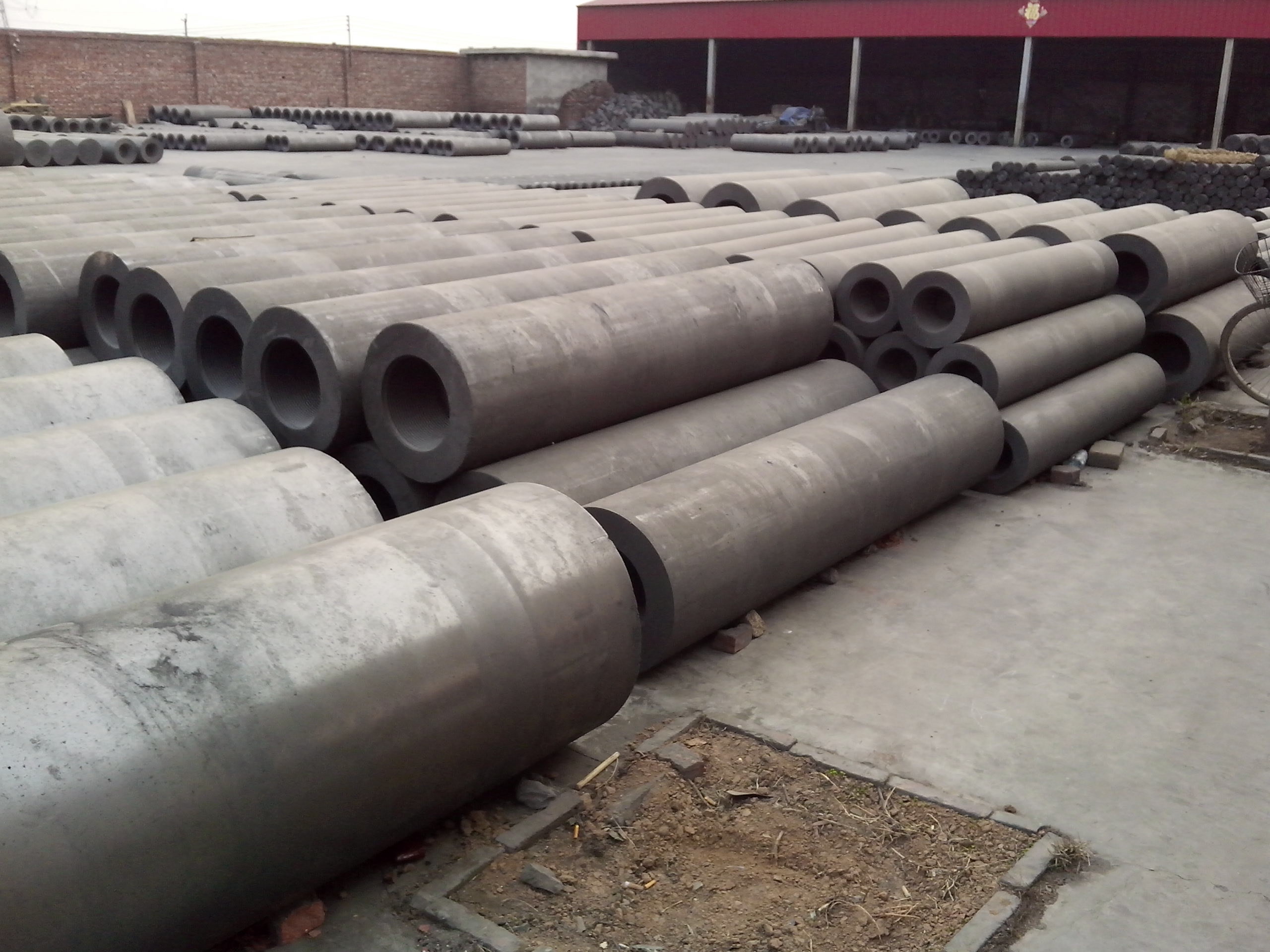

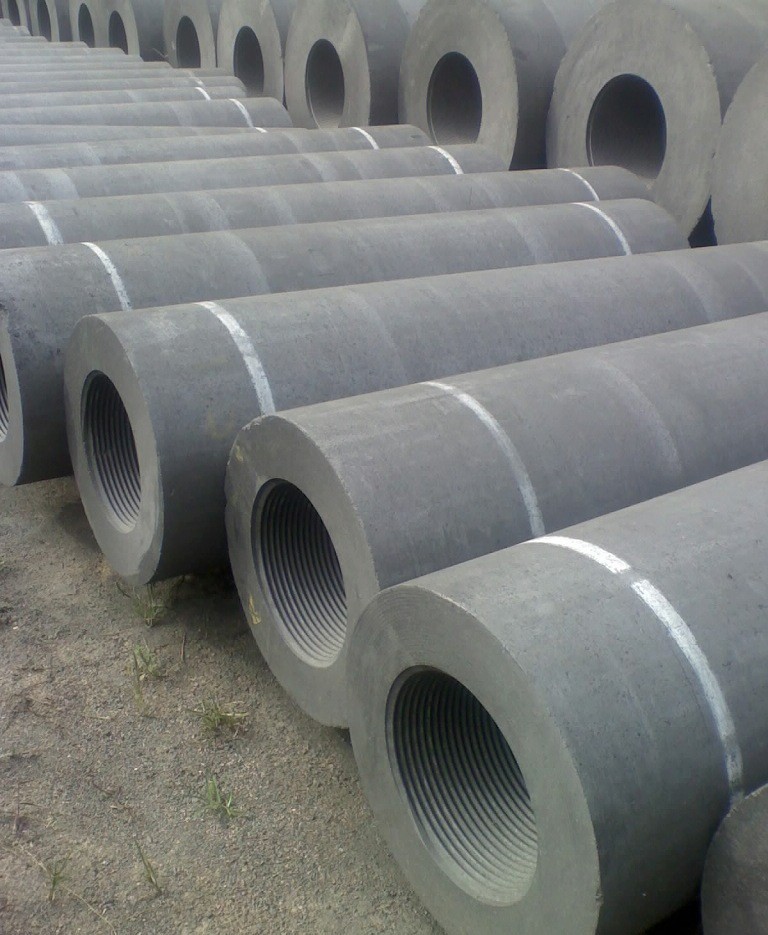

Competitive 550mm dia graphite electrode with 4TPI connet
| Lieu d'origine | Chine |
|---|---|
| Nom de marque | Haisen |
| Certification | QA/QC |
| Numéro de modèle | Électrode en graphite |
| Quantité de commande min | 25 |
| Prix | USD1000/MT |
| Détails d'emballage | Palette en bois |
| Délai de livraison | 10-15 jours |
| Conditions de paiement | TT/LC |
| Capacité d'approvisionnement | 3000 tonnes métriques/tonnes métriques par mois |
Détails sur le produit
| Application | EAF/LF | Diamètre | 550 mm |
|---|---|---|---|
| Longueur | 1700~2400mm | Résistance (μΩ.m) | ≤6.5 |
| Densité apparente (g/cm3) | ≥1,65 | Extension thermique | ≤ 2.4 |
| Résistance à la flexion (N/m2) | ≥10.5 | Taper | Bloc d'électrode |
| Grade | UHP (puissance extrêmement élevée) | Connecter | 4TPI |
Description de produit
RP HD HP UHP Dia200mm 300mm 400mm 500mm Good Quality Best Price Graphite Electrode With Nipple
Specifications for RP, HP, UHP graphite electrodes with nipples:
| RP | HP | UHP |
| Electrode: Bulk Density≥ 1.56g/cm3 Specific Resistivity≤ 8.5μm Bending Strength≥ 10.0MPa Elastic Modulus≤ 9.3GPa Thermal Expansion Coefficient≤ 2.7x10 -6/°C Ash≤ 0.5% Nipple: Bulk Density≥ 1.68g/cm3 Specific Resistivity≤ 7.0μm Bending Strength≥ 14.0MPa Elastic Modulus≤ 13.7GPa Thermal Expansion Coefficient≤ 2.5 x10 -6/°C Ash≤ 0.5% |
Electrode: Bulk Density≥ 1.65g/cm3 Specific Resistivity≤ 6.5μm Bending Strength≥ 12.0MPa Elastic Modulus≤ 10.0GPa Thermal Expansion Coefficient≤ 2.2x10 -6/°C Ash≤ 0.3% Nipple: Bulk Density≥ 1.74g/cm3 Specific Resistivity≤ 5.5μm Bending Strength≥ 16.0MPa Elastic Modulus≤ 14.0GPa Thermal Expansion Coefficient≤ 2.0 x10 -6/°C Ash≤ 0.3% |
Electrode: Bulk Density≥ 1.68g/cm3 Specific Resistivity≤ 5.8μm Bending Strength≥ 16.0MPa Elastic Modulus≤ 14.0GPa Thermal Expansion Coefficient≤ 1.9x10 -6/°C Ash≤ 0.2% Nipple: Bulk Density≥ 1.76g/cm3 Specific Resistivity≤ 4.5μm Bending Strength≥ 18.0MPa Elastic Modulus≤ 16.0GPa Thermal Expansion Coefficient≤ 1.4 x10 -6/°C Ash≤ 0.2% |
Specification
| Regular Power 400mm Graphite Electrodes | |||
| Physical Properties | Unit | Dia400mm | |
| Specific Resistance | Electrode | μΩM | 7.8 |
| Nipple | 6.8 | ||
| Transverse | Electroe | Mpa | 8.4 |
| Nipple | 13.5 | ||
| Elastic modulus | Electrode | Gpa | 9.3 |
| Nipple | 14.0 | ||
| Ash content | Electrode | % | 0.5 |
| Nipple | 0.5 | ||
| Bulk density | Electrode | g/cm³ | 1.55 |
| Nipple | 1.72 | ||
| C.T.E | Electrode | 10-6/℃ | 2.8 |
| Nipple | 2.7 | ||
Packing
Packed in wooden cases with steel strips
Delivery: within 20days after receiving 30% deposit
We mainly produse graphite rod, graphite block, graphi.te crucible,graphite mould, graphite bearing,graphite felt,carbon fiber cloth,etc.
make it according to drawing and specifications.
for the graphite,We have mold graphite,isostatic graphite,extruded graphite,vibration graphite. bulk density from 1.6g/cm3 to 1.91g/cm3.
Carbon-graphite products for electron and semiconductor industry
Carbon-graphite products for application of processing by industrial furnace under high temperature;--
Carbon-graphite products for sintering mold of diamond tools
Carbon-graphite products for non-ferrous metallurgy and processing;
Carbon-graphite products for mechanical industry;
Carbon-graphite products for high-tech field
Carbon-graphite products for EDM
Carbon-graphite products for aviation and aerospace industry
